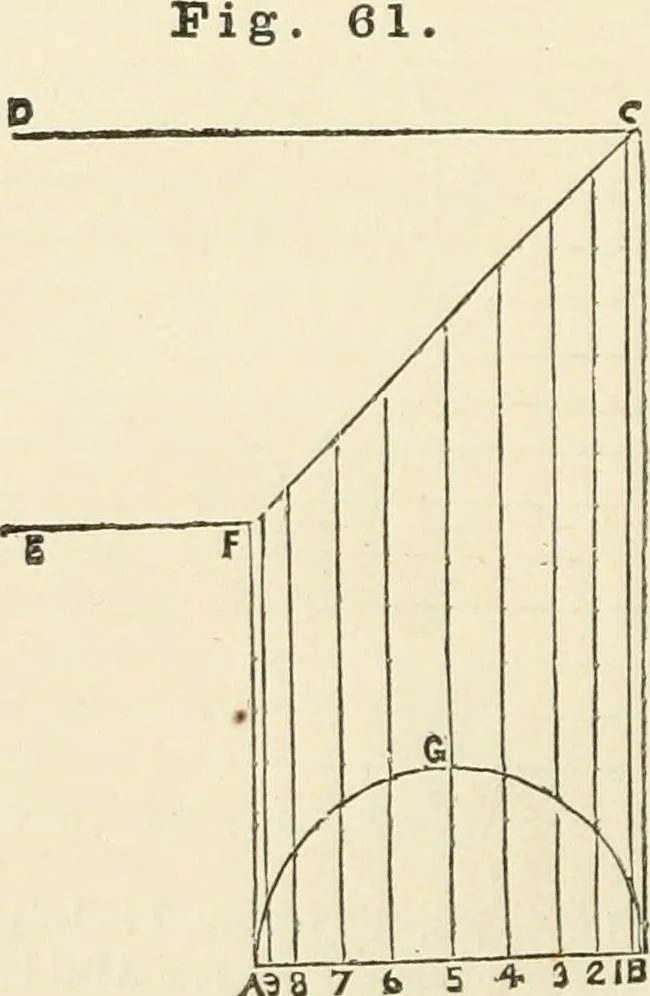

e line ABC into four equal parts,and erect the lines AD, 01, BF, 01, CE ; set off on each side of01, 01, the same number of equal distances as in one-half thesemicircle; from the points draw lines parallel to BF; make AD,BF and CE equal to HF ; make 01, 01 equal to BG ; also, eachof the parallel… … A3 a Let ABCD, fig. 61, be the given elbow ; draw the line AB atright angles to BC ; draw the line FC ; describe the semicircleAGB; divide the semicircle into any number of equal parts ; fromthe points draw lines parallel to BO, as 1, 2, 3, &c. FOR DESCRIBING PATTERNS. G3 Fig. 62, ^ tt.1 1 ) 11…
