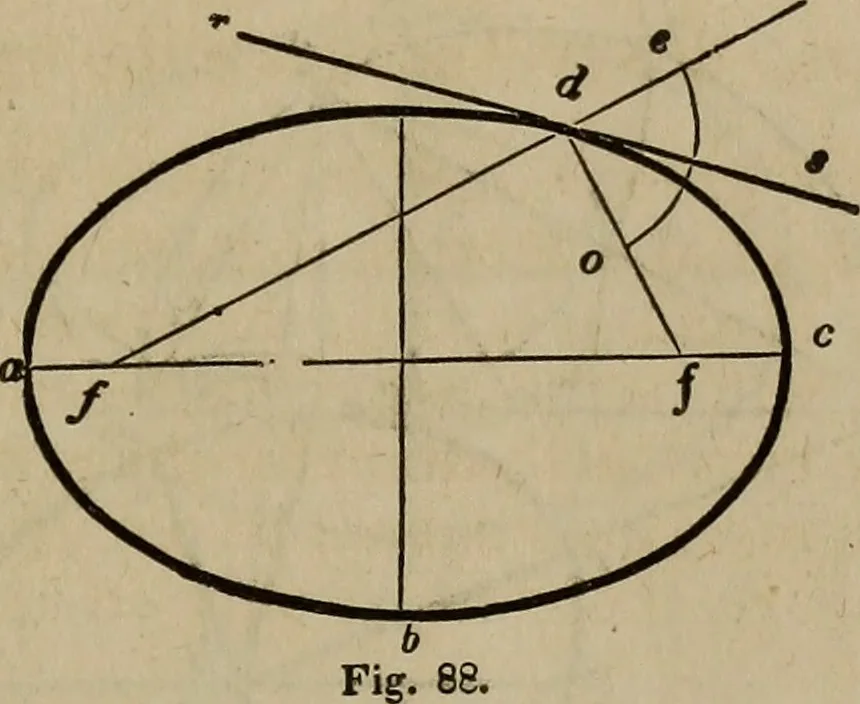

be the arc, j i ; upon h and/, with h k for radius, describe the arcs, j k and I i ; this willcomplete the figure. This is an approximation to an ellipsis ; and perhaps nomethod can be found, by which a well-shaped oval can be drawnwith greater facility. By a little variation in the piocess,… … 122.—To draw a tangent to an ellipsis. Let a 6 c d, {Fig.88,) be the given ellipsis, and d the point of contact. Find thefoci, {Art. 115,)/and/, and from them, through d, draw/e andf d; bisect the angle, {Art. 77,) e d o, with the line, s r: thens T will be the tangent required.
