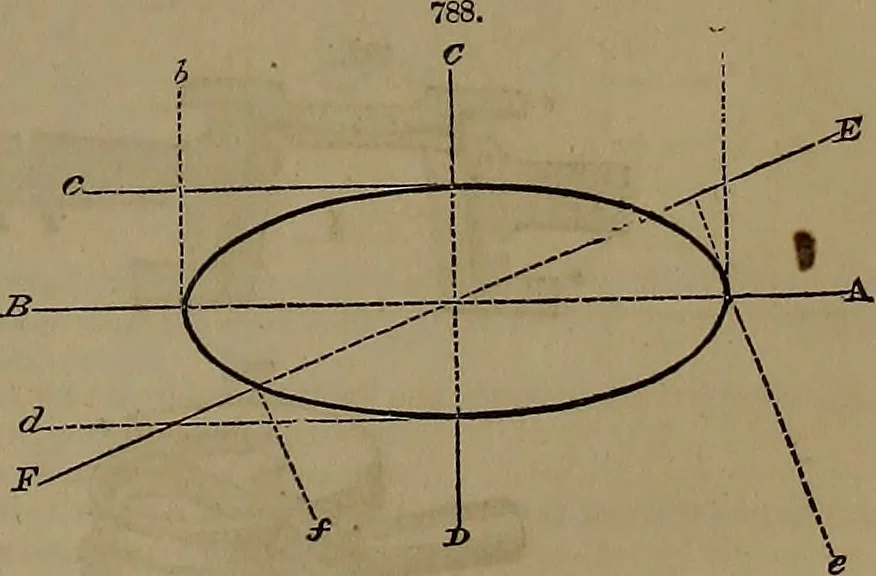

a similar manner. The mould could be also parted upon the line C D, because in that direction likewise, no part of themodel extends beyond the lines c d, which show the direction in which the mould would be then lifted. The mould, however complex, could be also parted either upon A B or upon C D,… … 264 CASTING AND FOUNDING. removal of the entire half of the mould upon the lines ef -would be impossible, because in raising themould perpendicularly to E P, that portion of the mould situated within the one perpendicular e, wouldcatch against the overhanging part of the oval towards A. Were the…
