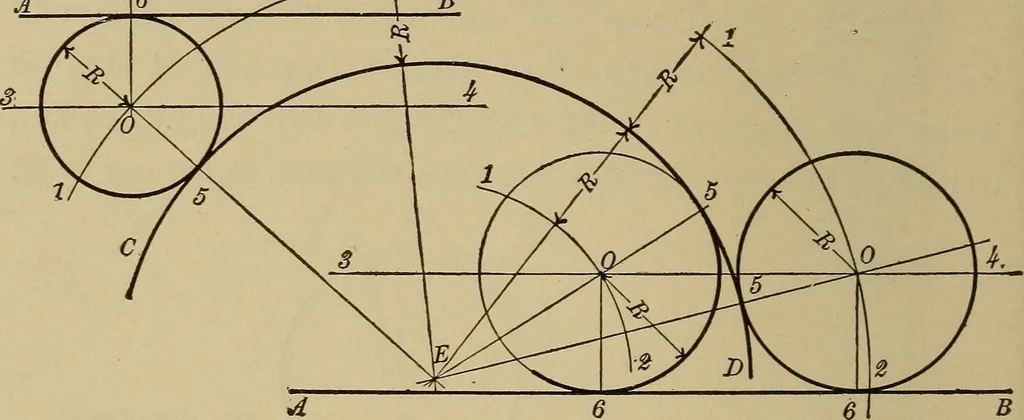

at C. With C as center and radius = C$ or C6describe the arc 5, 6. Fi|b 63! Draw an Arc of a Circle of Given Ra-dius R tangent to a Straight Line AB and a CircleCD.—From £, the center of the given circle, draw an arc of a 3° MECHANICAL DRAWING. circle i, 2 concentric with CD at a distance R from… … Fig. 63. FiJb 64*. To Describe an Ellipse ApproximatelyBY MEANS OF THREE RADII (F. R. Honeys method).—
