The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 228

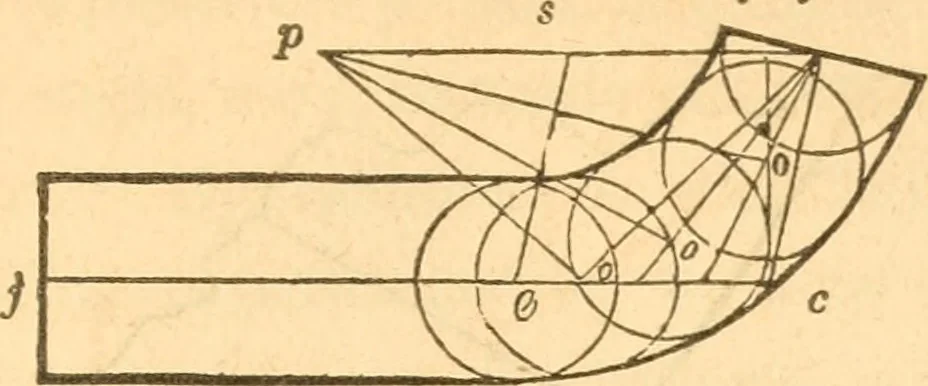

ng the platform ; and a 6 c isthe plan of a line passing through the centre of the rail aroundthe cylinder. Through i and d, draw i k, and through J and e,draw 7 k ; from A;, draw k Z, parallel to /e ; from 6, draw h m,parallel tog d; from /, draw I r, parallel to kj ; from n, draw n/, at right… … Fig. 262. equal to c ^ at Fig. 261; through t, drawp /, parallel ioj c, andmake 11 equal to ^ / at Fig. 261 : join I and c, and complete theparallelogram, eels; find the points, o, o, o, according to ^r<f.118; upon e, o, o, o, and/, successively, with a radius equal tohalf the width of the rail,…
