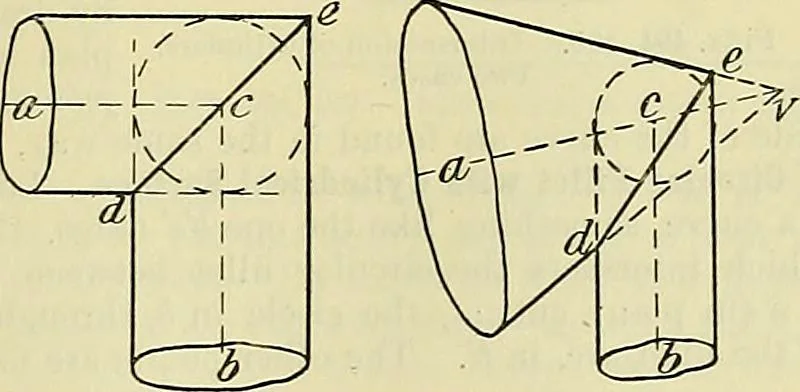

Fig. 492 a conicalnozzle. 257. Intersection of Two Cones and a Cylinder.—The threeintersecting pieces (Fig. 493), if in the form of pipes, wouldniake what is called an irregular breeches-piece. It will beseen that they all envelop the sphere whose centre is c; theintersection of the cylinder and… … r-
