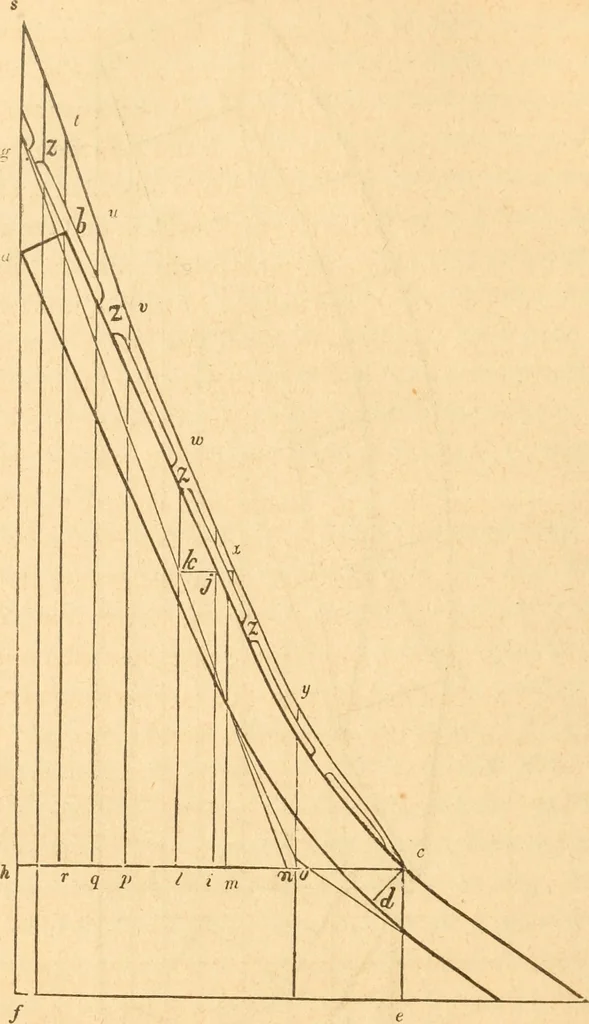

Fig. 295. 246 AMERICAN H0r5Ji?ARPENTEIl. … Fig. 296. The object of drawing these lines is to find the point, g-, and thatcan be done by taking any proportional parts of the lines given.as well as by taking the whole lines. For instance, supposing ck and h j to be the full length of the given lines, bisect one in iand the other in m; then a…
