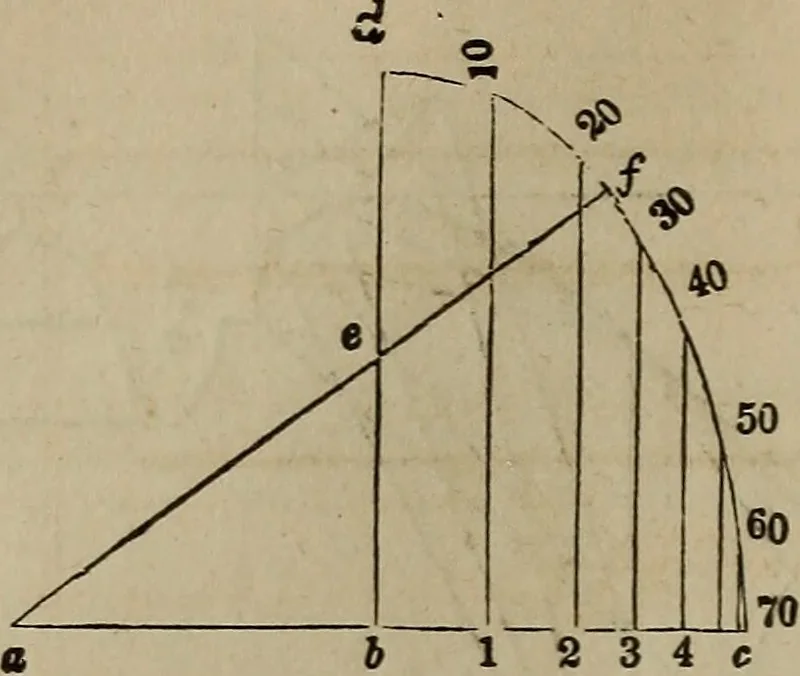

Fig. 199. 148 AMERICAN HOUSE-CARPENTER. … b 12 3 4cFig. 200. 252.—To proportion an eave cornice in accordance with theheight of the building. Draw the line, a c, {Fig. 200,) andmake b c and b a, each equal to 36 inches; from b, draw b d, atright angles to a c, and equal in length to f of a c ; bisect b dine, and from a, through e, draw a…
