The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 49

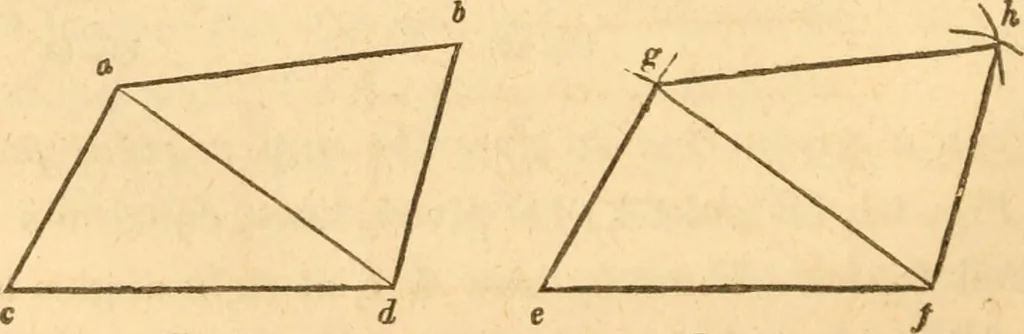

i b for radius, describe an arc at/; upon c?, with a forradius, describe an arc intersecting the other at/; join d and/,also/and e ; then dfe will be the triangle required. … Fig. 65. Fig. 66. PRACTICAL GEOMETRY. S3 100.—To construct a figure equal to a given^ right-lined figure. Let abed, {Fig. 65,) be the given figure. Make ef, {Fig. 66,) equal to c d ; upon /, with d a for radius, describe an arc at g; upon e, with c a for radius, describe an arc intersecting the…
Carpentry · Architecture
