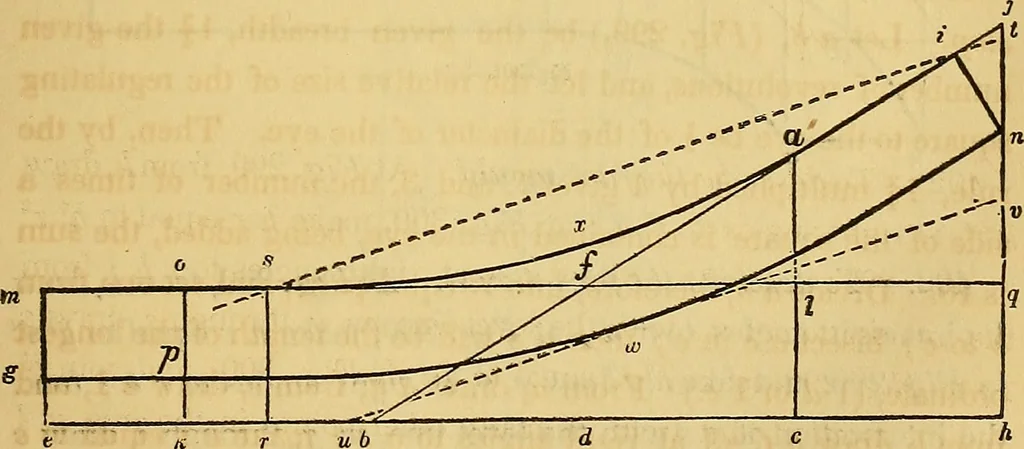

eface of the second riser, c\ and from p, with half the tread in thedividers, space off as at o, q^ r, 5, t, w, &c., as far as cf; upon 2,3, 4 and 5, describe the centre-line of the rail around to the eyeof the scroll; from the points of division in the circle, o r m, drawlines to the… … Fig. 300. 401.— To obtain the falling-mould for the raking part of thescroll. Tangical to the rail at h, {Fig. 299,) draw h k, parallel to da; then k a^ will be the joint between the twist and the other partof the scroll. Make d ^ equal to the stretch-out of de^ and upon d AMERICAN HOUSErCARPENTER.…
