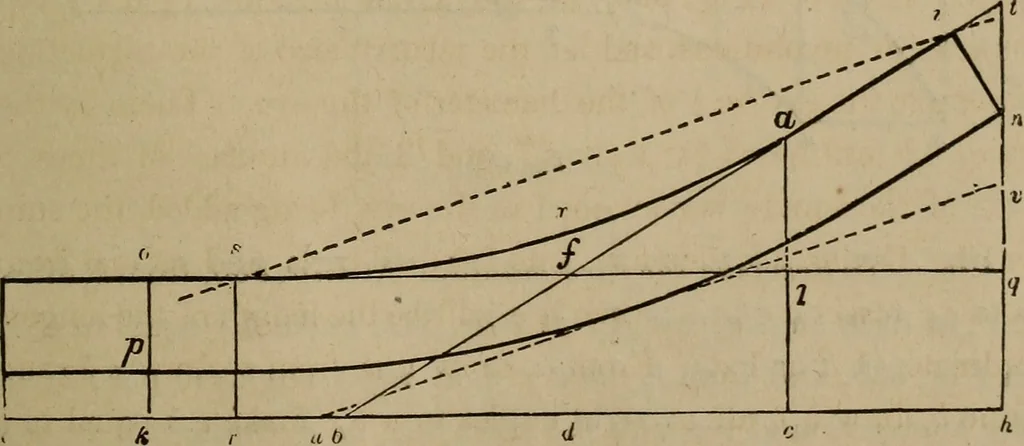

eface of the second riser, c^, and from p, with half the tread in thedividers, space off as at o, q, r, s, t, w, <fcc., as far as q^; upon 2,3, 4 and 5, describe the centre-line of the rail around to the eyeof the scroll; from the points of division in the circle, oru, drawlines to the… … Fig. 881. ^94t.— To obtain the falling-mould for the raking j^art of thescroll. Tangical to the rail at A, {Fig. 330,) draw h k, parallel to da; then k a will be the joint between the twist and the other partof the scroll. Make d e equal to the stretch-out of d e, and upon d 48 378 AMERICAN…
