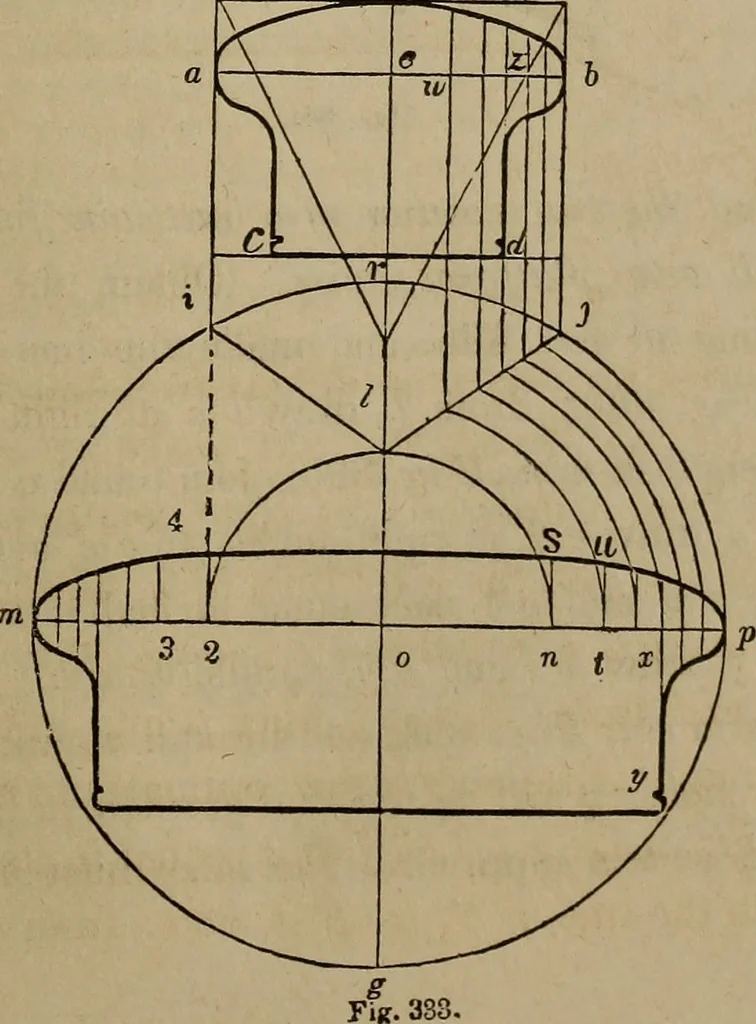

e-mouldsover winders, are intended for moulded rails. For round rails,the same process is to be followed with this difference: insteadof working from the sides of the rail, work from a centre-line.After finding the projection of that line upon the upper plane,describe circles upon it, as at Fig.… … 380 AMERICAN HOUSE-CARPENTER 497.—To ascertain the form of the newel-cap from a sectionof the rail. Draw a 6, {Fig. 333,) through the widest pait ofthe given section, and parallel to c d; bisect ab in e, and througha, e and 6, draw h iyfg, and kj, at right angles to a b; at a con-venient place on…
