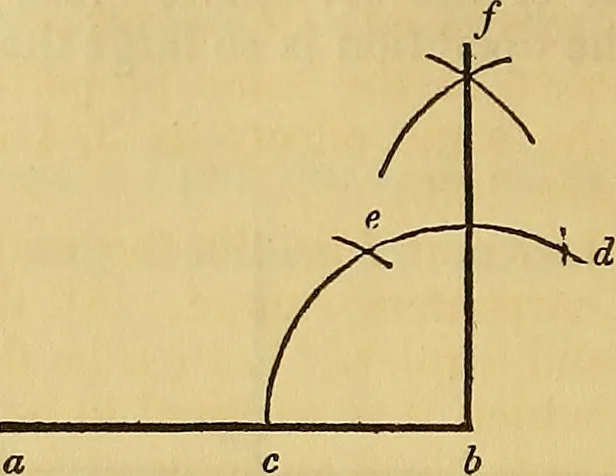

f a line. Let a,{Fig. 30,) at the end of the line, c a, be the point at which theperpendicular is to be erected. Take any point, as b, above the 3 18 AMERICAN HOUSE-CARPENTER. line, c a, and with the radius, h a, describe the arc, d a e; through d and 6, draw the line, d e ; join e and «, then e a… … Fig. 31. 74, a.—A second method. Let 6, {Fig. 31,) at the end of theline, a b, be the point at which it is required to erect a perpen-dicular. Upon b, with any radius less than b a, describe the arc,c e d ; upon c, with the same radius, describe the small arc at e,and upon e, another at d ; upon e…
