American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)
Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 148

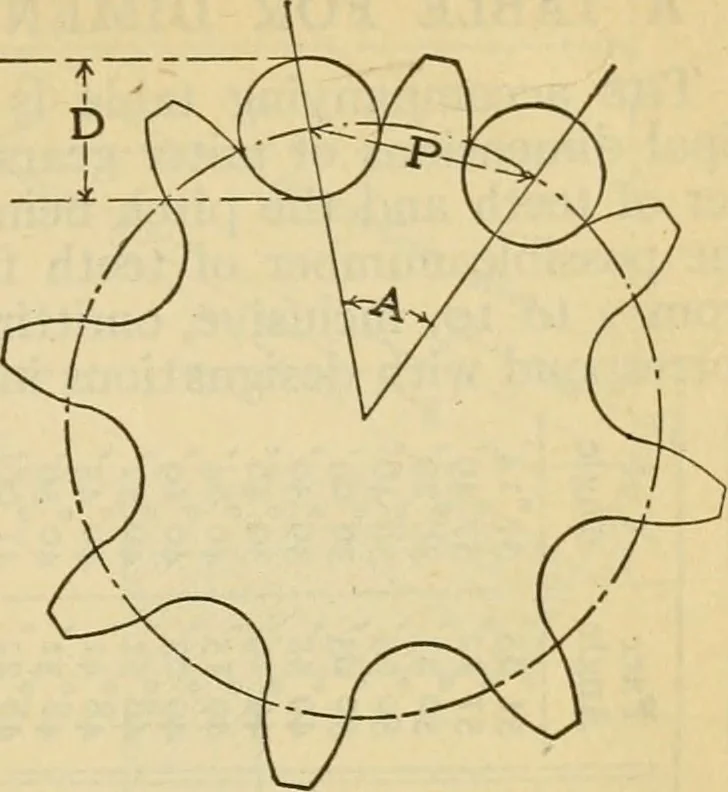

6.692 7.017 6.367 22 7.010 7-335 6.685 23 7.328 7-653 7.003 24 7.646 7.971 7.321 25 7.964 ■ 8.289 7.639 26 8.282 8.607 7.957 27 8.600 8.925 8.275 28 8.918 9-243 8-593 29 9-237 9.562 8.912 30 9-556 9.881 9.231 DIAMETERS OF SPROCKET WHEELS 119 Calculating Diameters ofSprocket Wheels for Roller Chains… … Diameter of Sprocket Wheels for Roller Chains 1 pitch whereD = .45. Diameter of Sprocket Wheels for Roller Chains of i^ PitchWHEN D = .45 No. of Teeth Pitch Diameter Outside Diameter Bottom Diameter in Inches in Inches in Inches 6 2- 2-45 1-55 7 2.305 2-755 1.85s 8 2.613 3-063 2.163 9 2.923 3-373…Machine-shop practice
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
