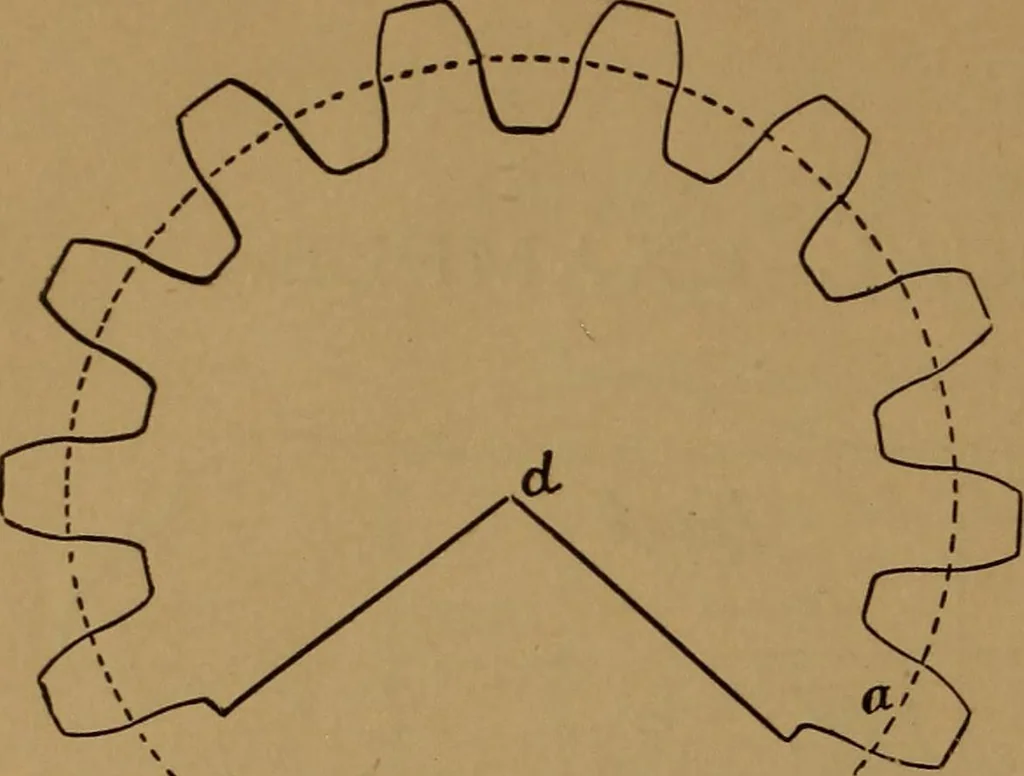

e the base line are straight radial lines. For fifty or more teeth draw the flank curve from pitch line to root line. Rack. — Draw by the special rule, the radius for the point being 1.05 inches. Note. — The dotted lines on the pinion teeth show the work of the commonrule for involute teeth, as…
