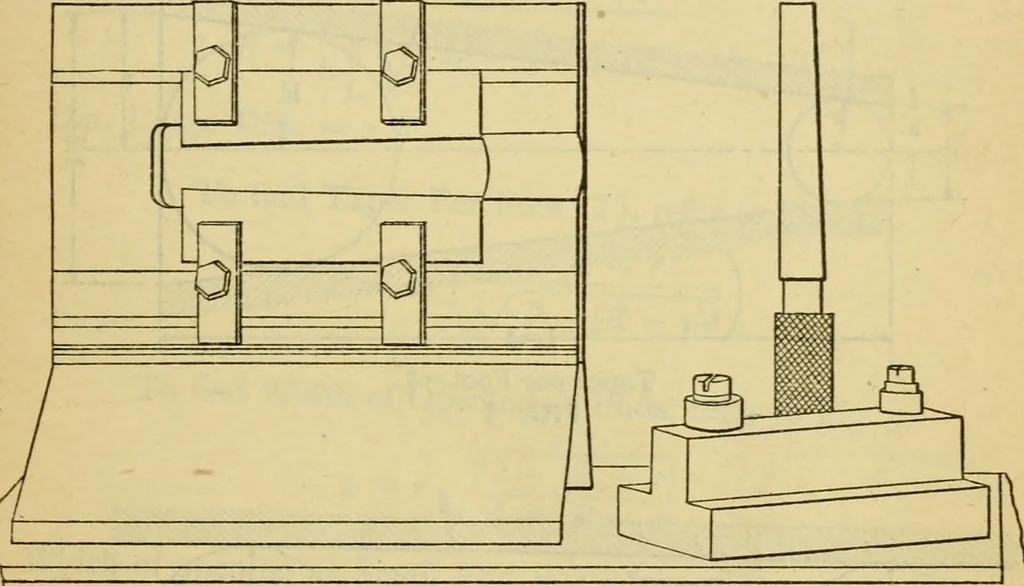

104 •5468 •5833 .6197 .6562 .6926 .7291 •7^55 .8020 .8384 H .5078 •5468 .5859 .6250 .6640 •7031 .7422 .7812 .8203 .8593 .8984 I .5416 .5833 .6249 .6666 .7082 .7500 .7917 •8333 .8750 .9166 •9583 TAPERS AND DOVETAILS MEASURING TAPERSAn Accurate Taper Gage The gage illustrated in Fig. i is an… … Fig. I. — Accurate Taper Gage that with the measuring instruments now in use it is a simple matterto measure accurately the diameters of the two disks, and the dis-tance these disks are apart. These three dimensions accurately andpositively determine the taper represented by the…
