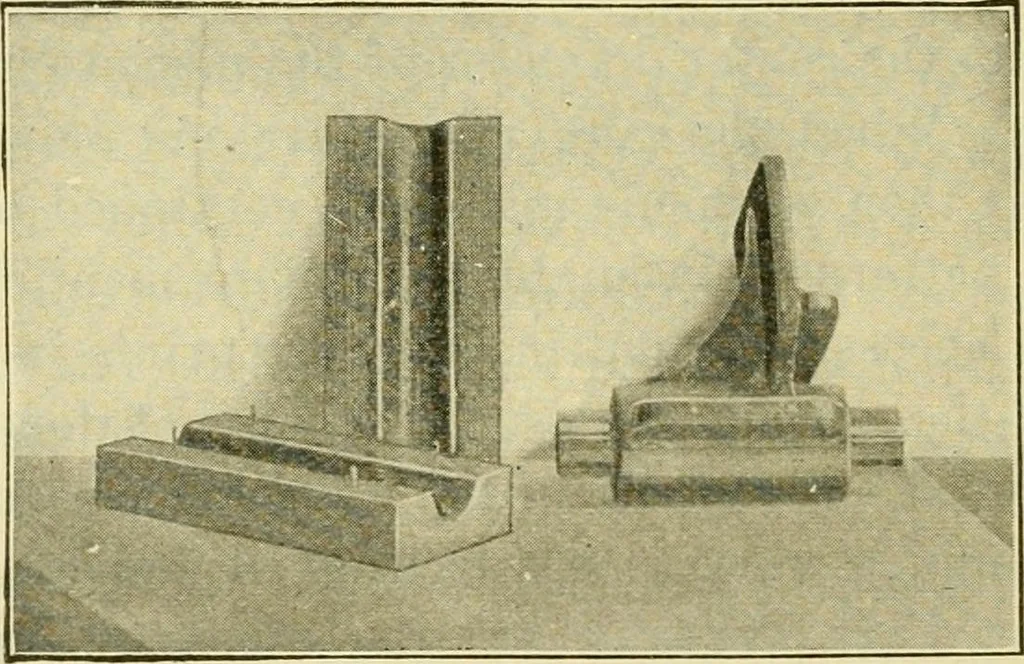

Mocks or halves of the core box should first be cutout and squared up. They are then clamped together andplaced in the vise. A hole is then bored out throughtheir center Avith an auger and bit. The bit used shouldhave a diameter a trifle smaller than that which the fin-ished core is to be. This is… … Fig. 289—The core box used for all of the cored patterns and four holes drilled in the other half. These are tolock the core-box halves. The finished core box is shownin Fig. 289. Having brought the patterns to shape they are allgiven a thorough sandpapering without sparing theproverliial elbow…
