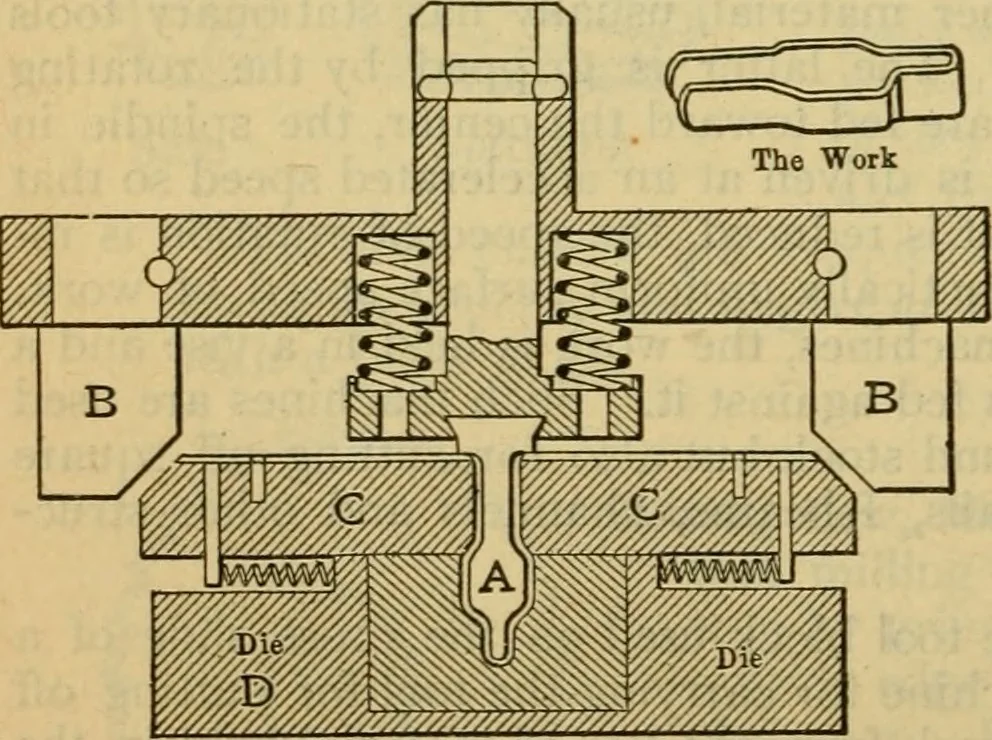

re while the beveled-fingers B act upon theslides C and cause themto move forward in thetop of die D and bendthe material to the out-line of the punch. Upon.the up-stroke of thepunch the slides C arepressed outwardly bytheir springs and. thebent piece of work is removed by the punch from the die.… … DIES, PUNCH PRESS — Continued 589
