Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 484

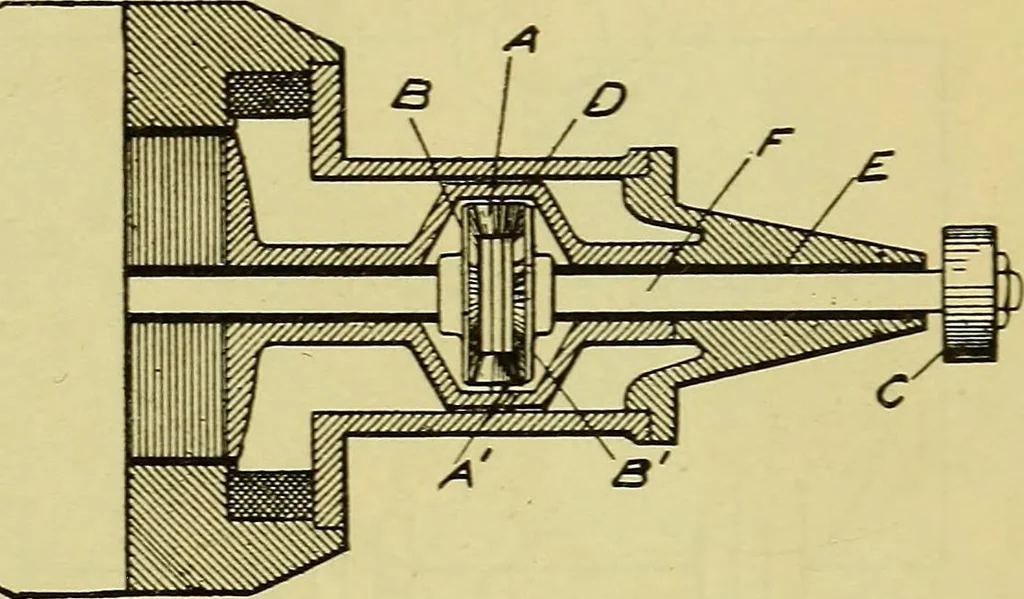

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 484 — Fig. 353.—Part Sectional Diagram of a Single Motor, arranged for drivingboth wheels through differential gear. A and A are the pinions of thedifferential gear; B, the bevel gear of the left-hand road wheel; D. bevelgear on right-hand road wheel; C. spur pinions driving internal gear onroad wheels;…
