American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)

Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 646

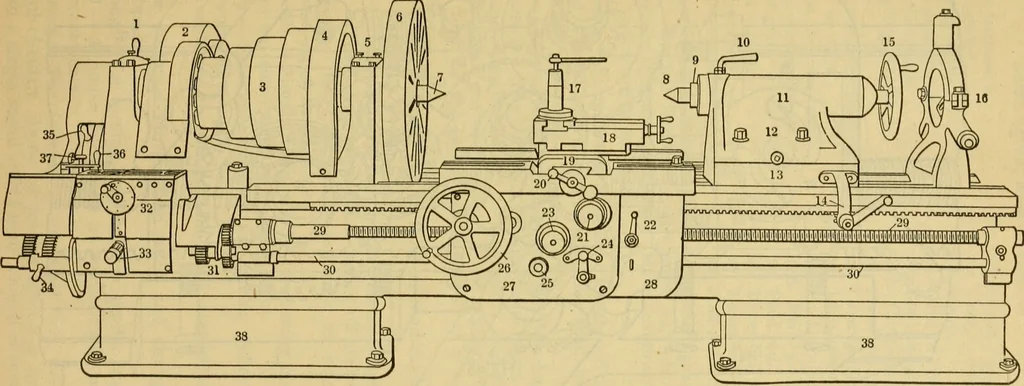

An illustration from American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions, 1914, leaf 646
. 7- Live center. 26. Hand feed. 8. Dead center. 27. Front apron. 9- Tail spindle. 28. Rear apron. lO. Tail-spindle lock. 29. Lead screw. II. Tail stock slide. 30- Feed rod. 12. Locking bolts. 31- Feed gears. 13- Tailstock base. 32- Feed box. 14. Tailstock pinion. 33- Change gear handle 15-… … 6i8 LATHE APRON
