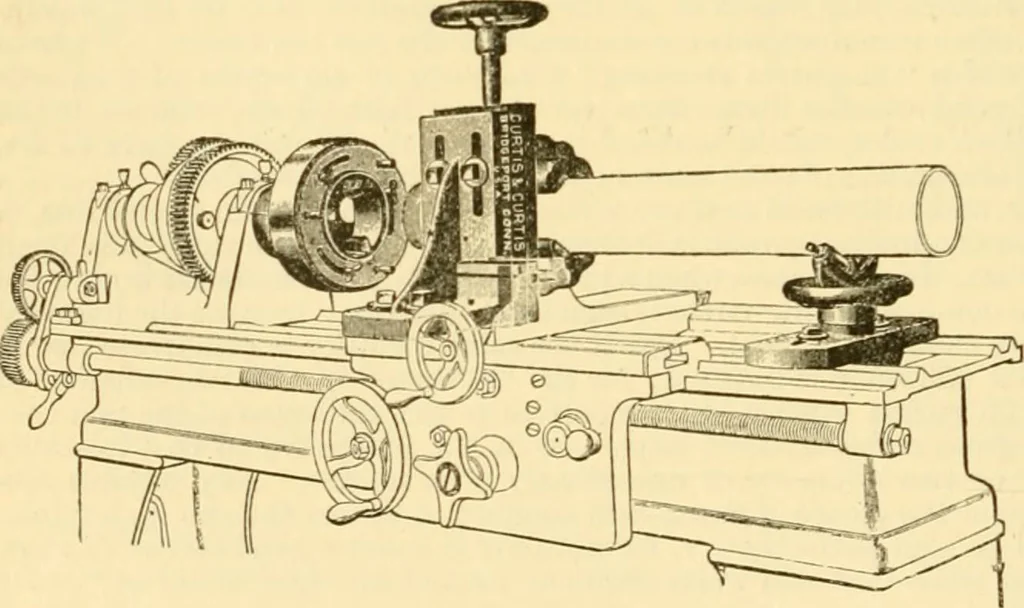

es of pipe without changing. Saunders Pipe-cutting and Threading Machine.—Fig. 5 shows a pipe-cutting andthreading machine made by D. Saunders Sons, Yonkers, N. Y. It may be run either byhand or by belt. It is arranged so that pipe can be threaded and afterwards cut off, withoutremoving any part of… … Fig. 4.—Pipe-threadiiig attachment for lathes. PIPE-CUTTING AND THREADING MACHINES. 621 off arrangement is fastened to the face of the large driving gear, between the gear and thedie, in such a manner that either may be used without one interfering with the other. Onthe face of the hirgo gearare…
