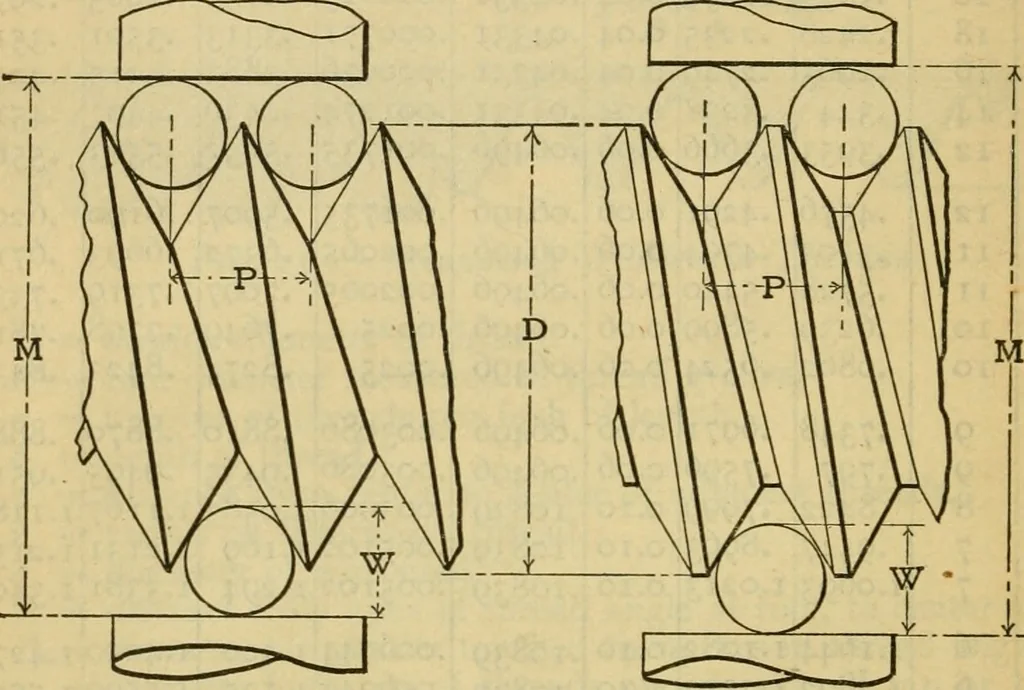

1567 .036252 5-5107 5-5213 5-5248 sr 2j 5-2415 5.no 0.20 .21567 .040 5-7455 5-7413 5-7446 6 2\ 5-4913 5-360 0.20 .21567 .040 5-9955 5.9913 5-9944 36 SCREW THREADS MEASURING FINE PITCH SCREW-THREADDIAMETERS The accompanying table should be of service to those using thethree-wire system of… … Formulas: For V Thread For Sellers Thread D = (M - 3 W) + 1.732 P. D = (M - 3 W) + 1.5155 P. M = (D - 1.732 P) + 3 W. M = (D - 1.S155 P) + 3 W. Fig. 14. — Measuring Fine Pitch Threads Constants for Use with the 3-W1RE System of MeasuringScrew Threads Threadsper Inch ForV Thread1.732 P = For SeUers…
