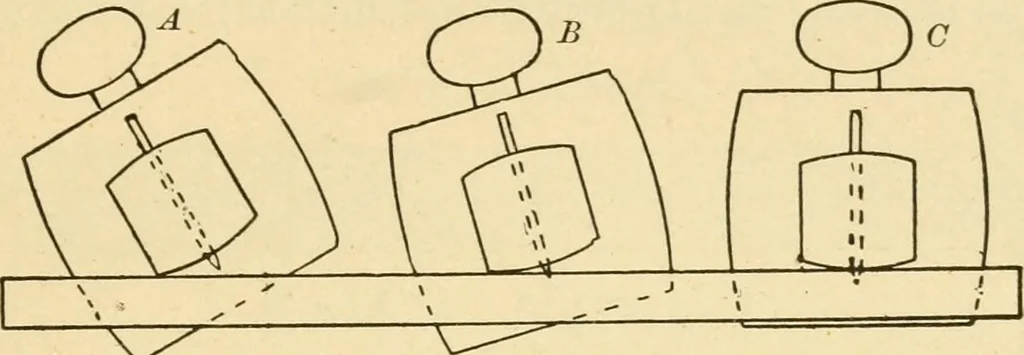

e cornerwhich is lowest and which is farthest from you must rest onthe work as in the end view, A. Fig. 36, where the steel pointdoes not touch the wood. {Im^jortant feature No. 1.) Then roll the gauge toward you till the point touches thewood, as at B. Do not roll it till the point stands… … XP^ Fig. 36. desired amount between the positions A and C. (Importantfeature No. 2.) That face of the gauge-block which restsagainst the edge ah of the work must also be placed in per-fect contact throughout its entire length and kept so while aline is being gauged. {Important feature No. 3.) There…
