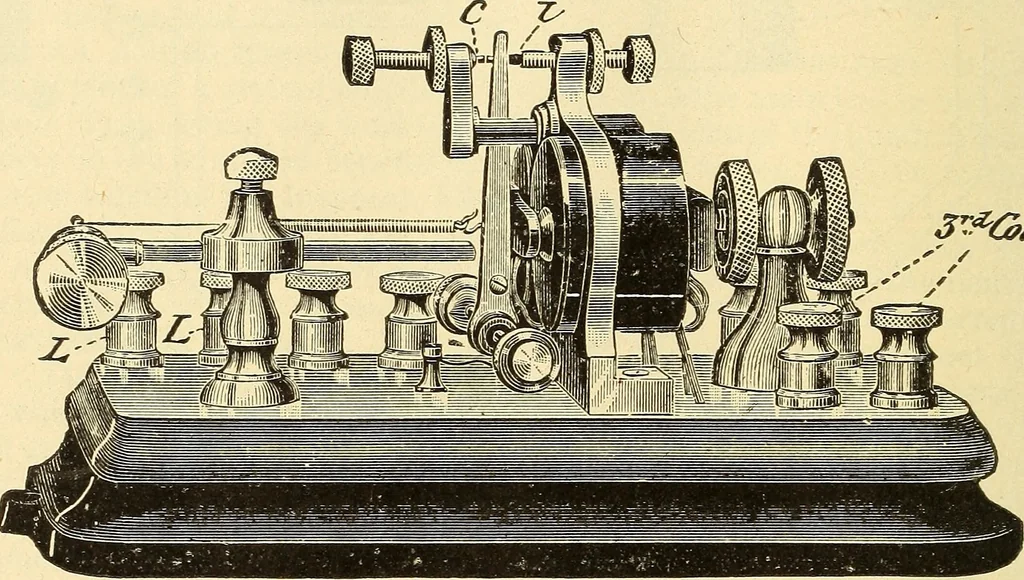

214 AMERICAN TELEGRAPHY. Smith condenser; cc are the boxes containing the 600 ohm coils; SP is the 3-point switch for putting line to ground at the desk; sc is the spark-coil withresistance equal to internal resistance of long end of the battery; se is the short end,le the long end of the main… … WESTERN UNION NEUTRAL RELAY. within its covers, are contained several separate series of resistance coils; rr and c^represent the retarding coils placed before the static compensating condensers c^ c^;
