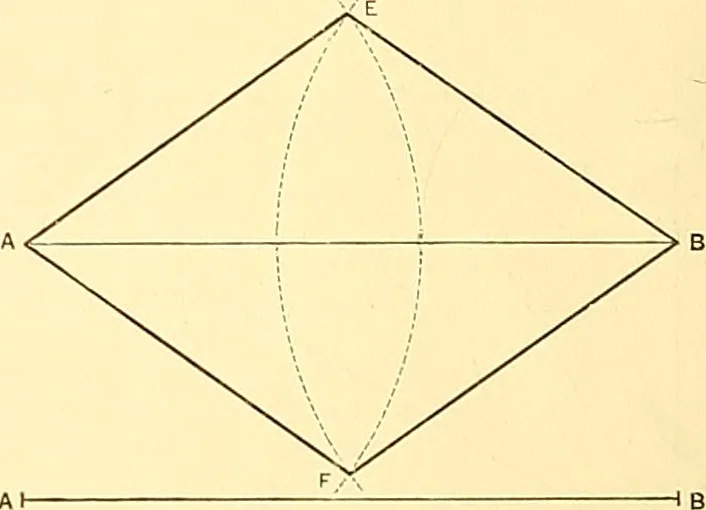

and one sideC D being given. Draw A B in any position, above the given line. Bisect it in 1 ;with 1 as centre, 1 A as radius, describe a circle; with A as centre,C D as radius, cut the circle in E ; and with B as centre, sameradius, cut the circle in F. Draw A E B F, the required oblong. / / \ \ \… … Pkob. 15.— To construct a rhombus, a side A B, and an angle Cbeing given. At the point A make an angle equal to C by Prob. 7 ; make A Dequal to A B, and with centres D and B, radius A B, describe arcscutting in E. Draw ADEB, the required rhombus. Prob. 16. — To construct a triangle of three given…
