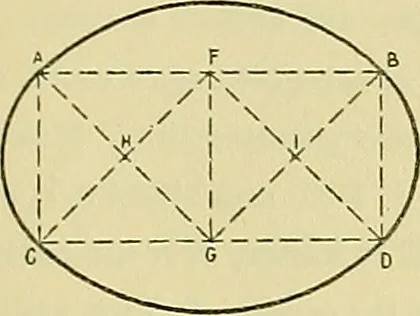

rally more prominence is given. As in the Gothicarches, the joint lines of the stones are radii in the correspond-ing sector. 95—Fig. 6.—Solution 2.—Let A B be the given span, and 0 Dthe altitude. With E A as a radius shorter than the givenaltitude, and centers E, D and F, describe the circles E… … Fig. 2.
