Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass (1887)

Faunce, Linus · Boston, W.J. Schofield, Printer · leaf 49

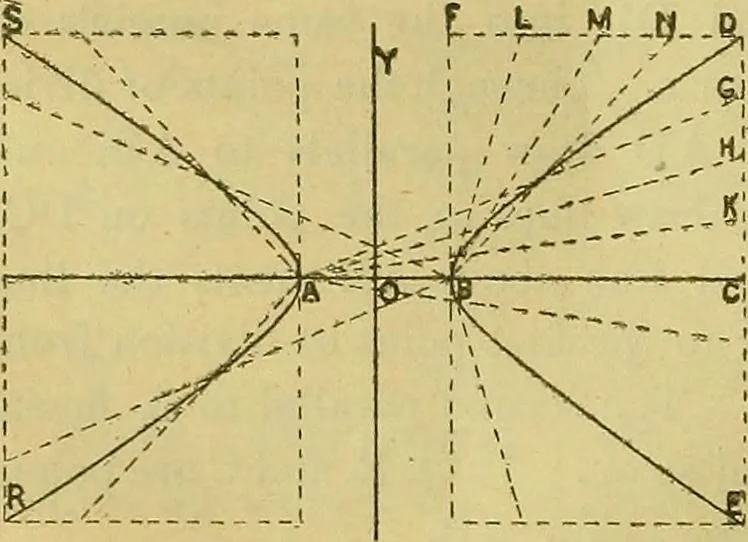

An illustration from Mechanical drawing. Prepared for the use of the students of the Massachusetts Institute of Technology, Boston, Mass, 1887, leaf 49 — Prob. 100. To draw an hyperbola when the diameter AB,the abscissa BC, and the double ordinate DE are given. Complete the rectangleBCDF, and divide CD andDF each into the same num-ber of equal parts. DrawBL, BM, and BN, inter-secting lines AK, AH, andAG respectively in pointson the curve. Repeat… … GEOMETRICAL PROBLEMS. 47

Mechanical drawing

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
