American text books of art education : Geometrical drawing (1873)
Smith, Walter, 1836-1886 · Boston : James R. Osgood & Co. · leaf 47

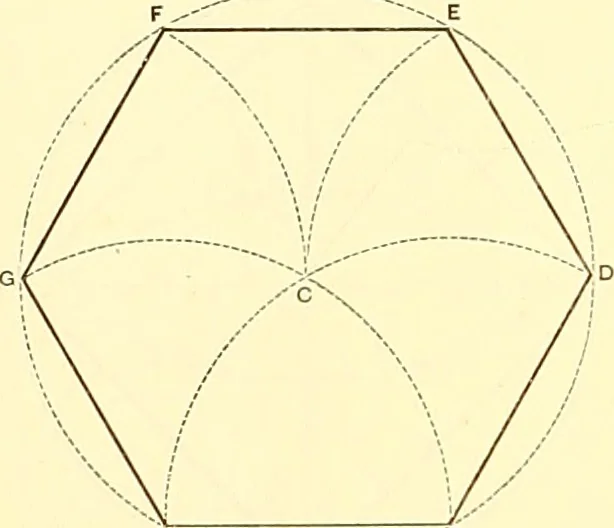

Pjiob. 36. — On a given base A B, to construct a regular hexagon. With centre A, radius A B, describe an arc, and with centre B,same radius, cut the arc in C ; with centre C, same radius, describea circle, and from B mark the distance A B, round its circumference,in points D, E, F, G- Draw… … A^-^ .--B Prob. 37.— Within a given circle to inscrilte a regular hexagon. Draw a diameter A B. With centres A and B and the radius ofthe circle as radii, describe arcs cutting the circumference in C andD and in E and F. Join A D, D F, F B, B E, E C, and C A. PitOB. 3S. — On a given base A B, to…
Geometrical drawing
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
