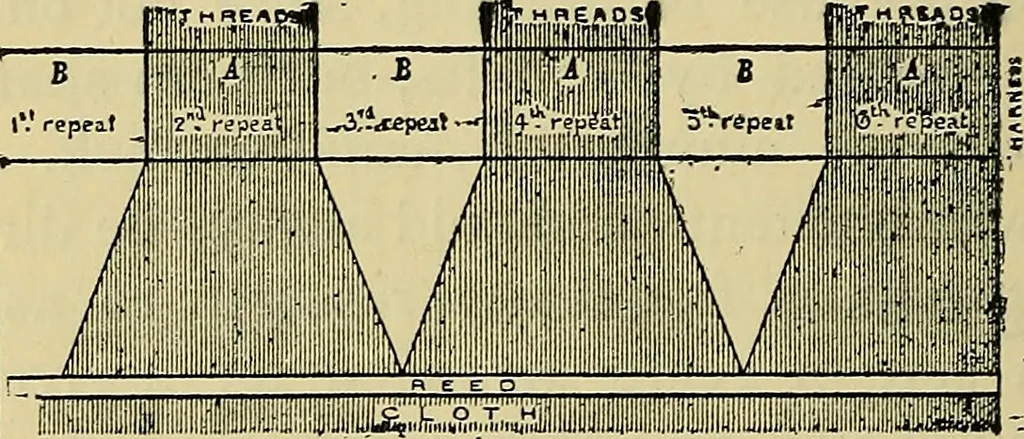

nch per shaft, thus 8 shafts X 6 = 48 threads per inch, and so on. In casting-out on the jacquard to reduce thesett it is usual to cast out uprights, since while casting-out in the harness leaves the full figuring capacity of thejacquard, yet the threads will be so extended in the reed,and the wear… … p25Siiiiiiiliiiiiiiiiiiiiiiii«iiiaiiiiiiiiiiFig. 25A. To cast out in the harness to 50 ends per inch maythen be effected as shown in Figure 25A by drawing-in4 inches or one repeat of the mails (A) and missing 4 inchesor one repeat B. The sley will then place the threads intheir correct position in…
