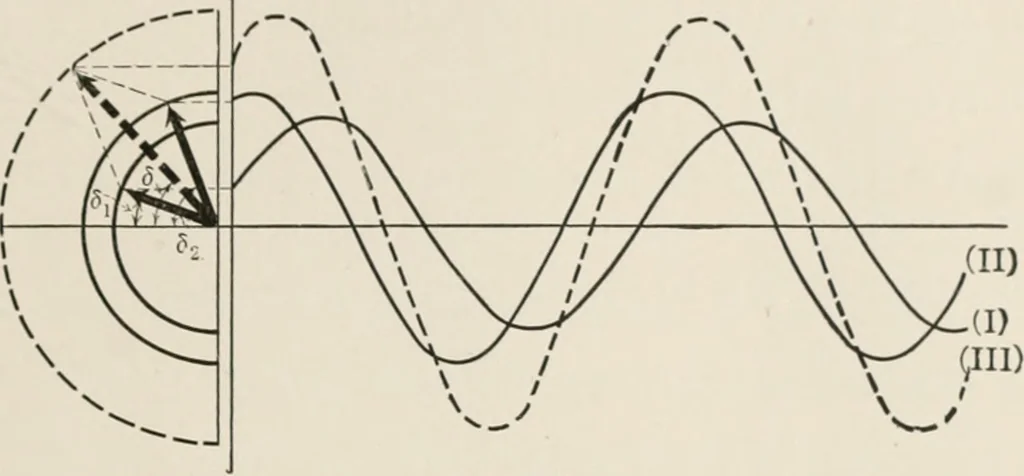

the motion is evidently defined by O] sin 8\ + a2 sin 52 tan 6 ai cos Si + a2 cos S2 (5) 239. Graphical Method. —The graph of the resulting mo-tion may be obtained by either of the following methods: I Represent the given motions by displacement-timecurves, bhen add the ordinates of these curves in… … Fig. 135. (2) Draw two concentric auxiliary circles with radii equalto the amplitudes of the component motions; draw a radiusin each circle making an angle with the 2-axis, equal to thephase angle of the corresponding motion; the vector sumof these radii gives the radius of the auxiliary circle for…
