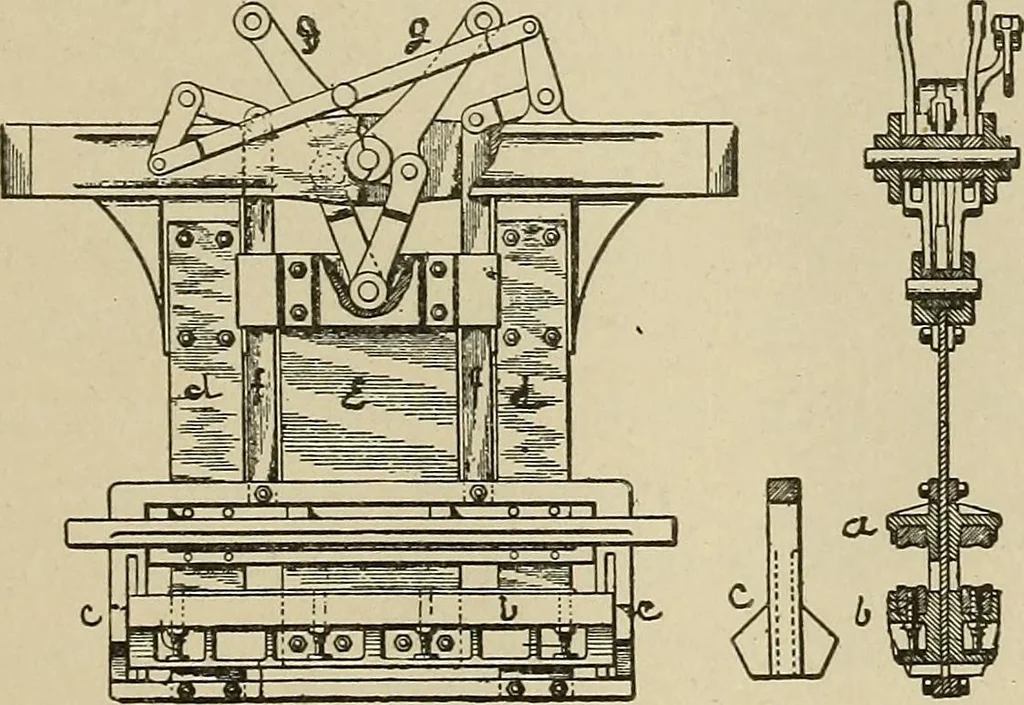

1597. CABLE RAILWAY GRIP.— Friction sheaves are drawn tightly on thecable by a vertical bar in the frame plate.Friction is increased by further tighteningthe grip wheel. 1598. Showing wheel connection withgrip. ^j^ … 1599. CABLE GRIP FORSTREET RAILWAYS.—^, b^ grip jaws and blocks; Cypull-up to throw the cable outof the jaws; d^ d, frameplates; e, grip plate connectedto b, and operated by the bellcrank levers g,g\ f,f, pull-upattached to frame and dis-engaging pieces c, c. 1600. End view of grip.
