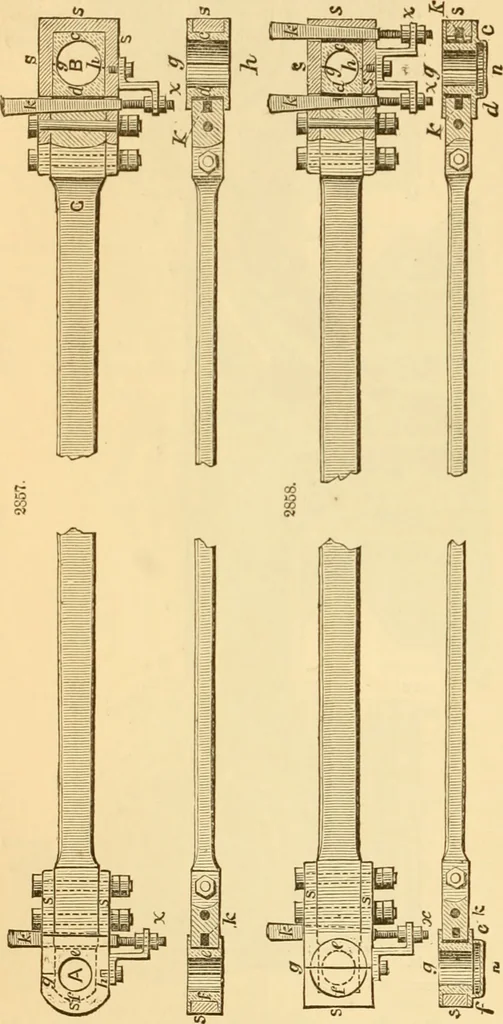

otion of the cross-head is transmitted by a mainconnecting-rod to the crank-pin of the main driving-wheel (see the general drawings, Figs. 2842 to2846), which, if there are more than one pair of driving-wheels, is coupled by so-called couplingor parallel rods with the crank-pins of the other… … LOCOMOTIVE, DESCRIPTION OF PARTS OF THE. 315 with the cross-head, the pin of which is grasped by the brasses fe, secured to the rod with a straps s and bolts ; a key k, provided with a screw-spindle and two nuts at x, serves to take up the wearof the brass ring, which is for that purpose made in…
