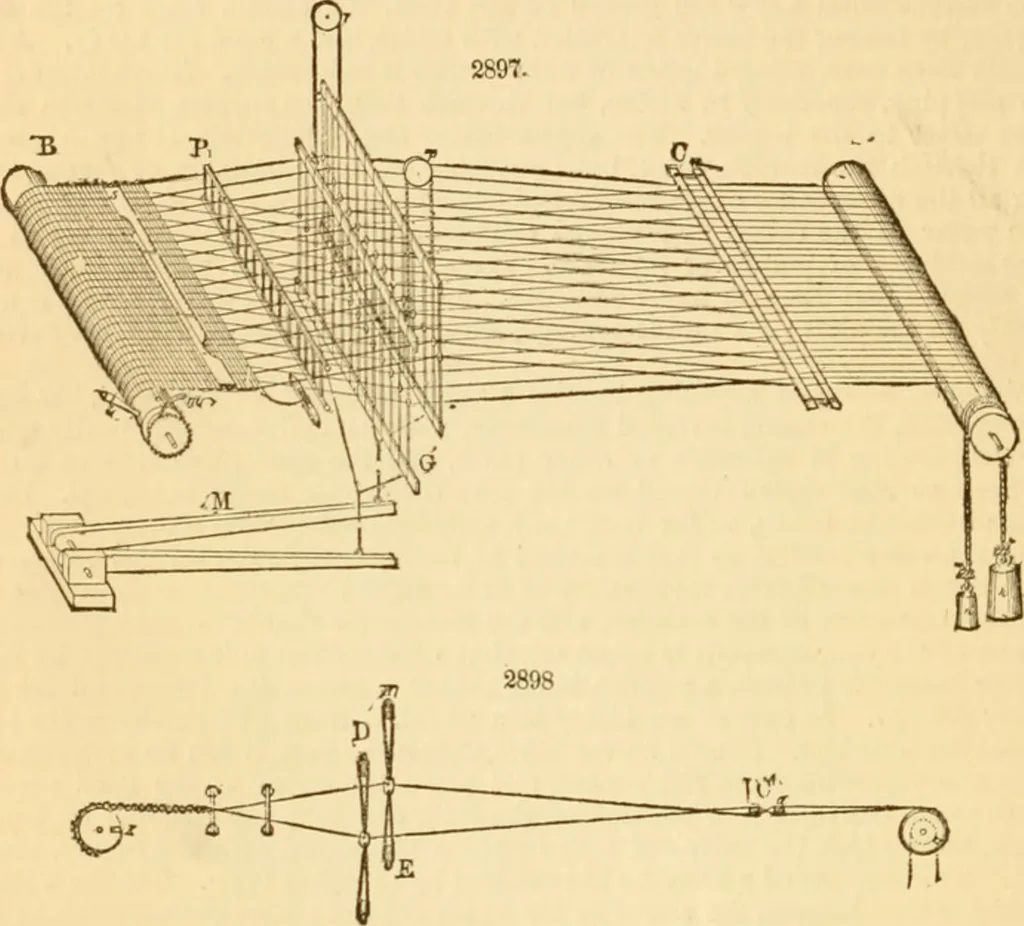

recarried out. In every loom, between opposite ends of the framework are placed two cylindrical beams, A andB Fig. 2897. The beam A is the warp-beam, on which the warp is wound, and B is the cloth-beam,upon which the cloth is wound as it is woven. The warp-threads are placed parallel to each… … in the beam B for that purpose, which is shown m section at x, Fig. 2898. In order to keep thethreads in their relative position and parallel to each other, two rods are inserted between the warp-threads C, in such a manner that each thread passes over one of the rods and under the other…
