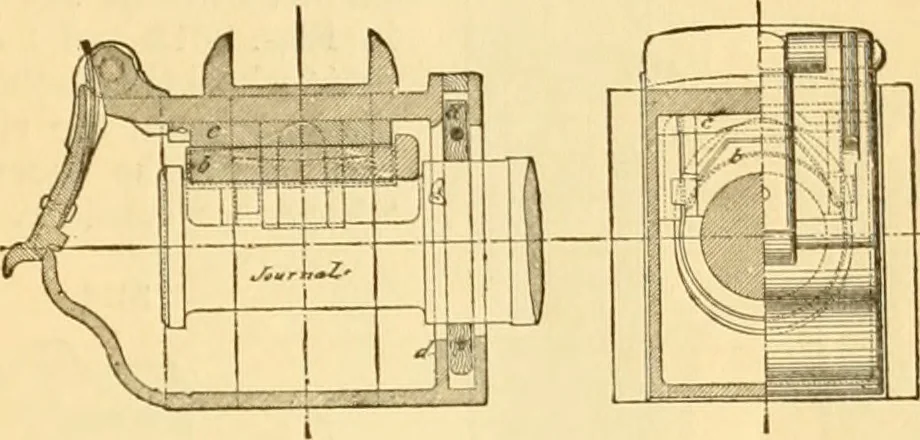

s is their neutralizing effect on all shocksimparted to wheels by running over rail joints and inequalities of the track.Iron bands attached to the wooden beams that are seen in the plan, fastenedbetween B and C, prevent a broken axle from falling down. The manner ofattaching a brake to the truck… … -V CO Co *U !-W frame B B act on the brake-beams, keeping them and the blocks off thewheels. The side elevation and the plan show the arrangement of leversthrough which the power is transmitted from the brake-spindlcs to the blocks. Car-axles are of wrought iron or steel, and their shape is…
