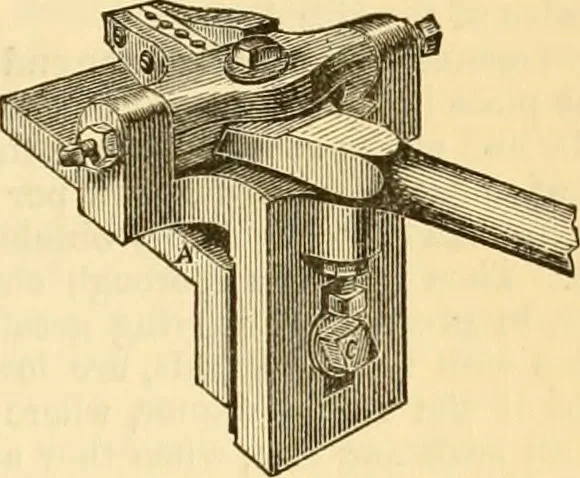

as to have traversed along the work to the re-quired distance when m strikes C. The details of the slide-rest are shown in Fig.37S4. A is the bed of the machine. « is acarriage adjustable along A, and bolted throughthe bolt and clamp b b. The cross-slide isoperated by the handle d—the amount of its… … motion in or out, and hence the depth of thetool-cut, being determined by the adjustment ofthe check-nuts e upon the screw g. h is thetool-holder, and i the tool-fastening screw. Toregulate the height of the tool an ingenious de-vice is employed, f is a plate whereon the toolrests, and its height…
