Theoretical estimation of the internal speed variation of a 3500 horse-power vertical cross-compound engine (1904)
Abbott, William Lamont, 1861-1951 · leaf 14

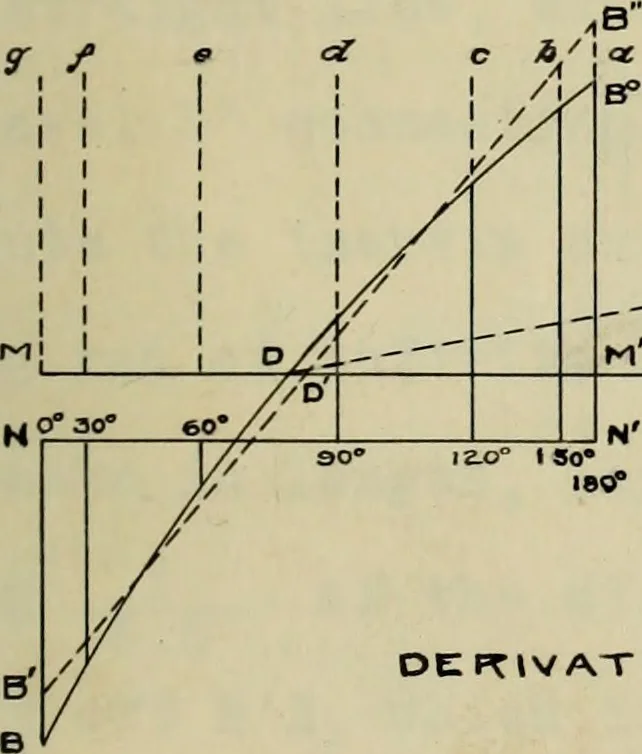

50 Tt Reciprocating weight - common to all cylinders 10213 H.P. Piston = 2120; rod ■ 1466. 2120 + 1466 + 1C213 =13799 « L.P. Piston = 8040; rod = 2042. 8040 + 2042 + 10213 =20295 n TABLE II. SYMBOLS AKD CONSTANTS Stroke ■ 5 feet K.P.M. 75 y = 5 n 75 19.63 y2 385.34 2.5 ft. R (of crank) = ■ W =… … Cr c 5.5 DE IT WAT ION Or CURVE OF INERTIASCALE 5 UBS. = I
