Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts (1880)

D. Appleton and Company, Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 972

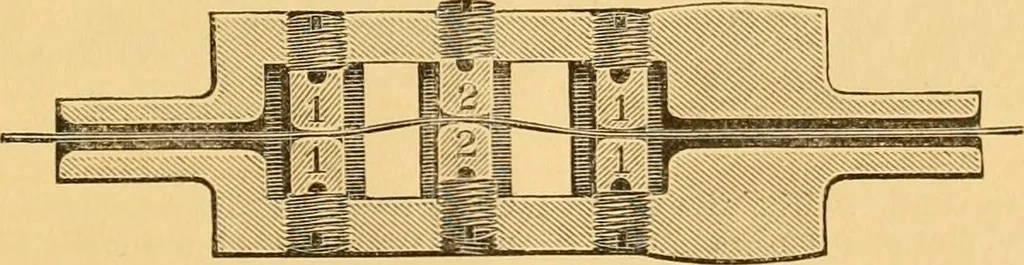

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 972 — Roll Wire-Straightener.—F\g. 4300 is an apparatus for straightening wire by rolls, which areadjusted by means of thumb-screws to bear heavily on the bends of the wire as the same is pulledthrough. The device is designed for attachment to another machine. 4301. … Rotary Wire-Straightener.—Fig. 4301 is a sectional view of another device for straightening wire,taking the same directly from the coil or bundle. The engraving shows the method of adjusting the 938 WIRE-FORMING MACHINERY. dies. Those at the ends (1) are set with their wire grooves central with the…
