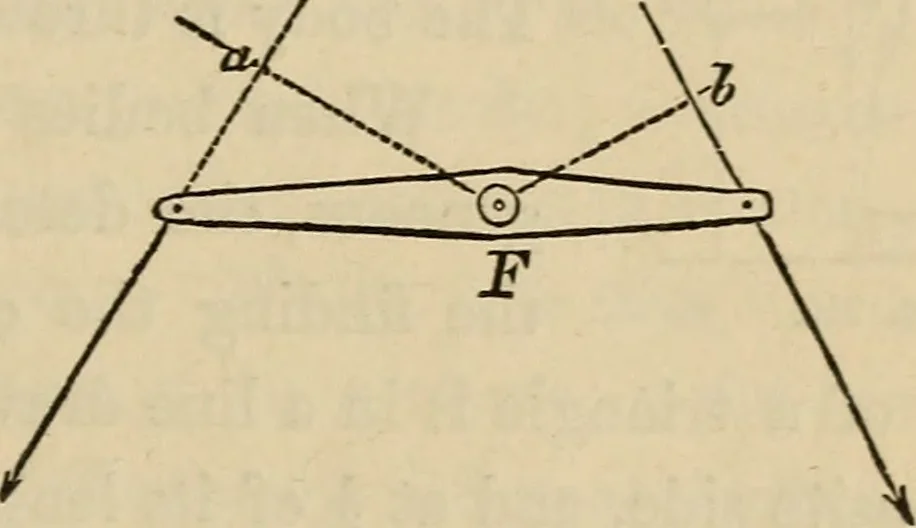

Fig. 205. of which the perpendiculars let fall from the fulcrum upon the direction ofthe forces are the radii. Thus, if the levers, Eig. 205, be acted on byforces of which the direction is shown by the arrows, the leverage, as it iscalled, or effective length of arm at which they act, are the…
