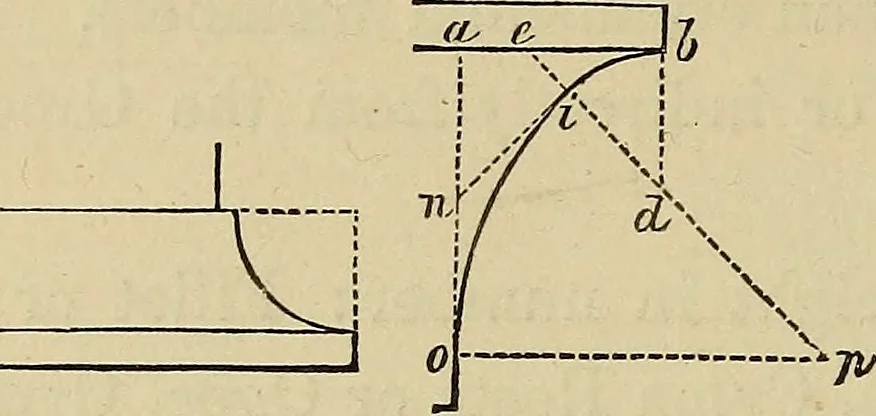

252 AECHITECTUEAL DRAWING. 2 … Fig. 73. Fig. 74. Fig. 75. h Ic. Divide e h and ef into the same number of equal parts; from ddraw straight lines to the points of division in ef^ and from h draw linesto meet those others snccessively. The intersections so found are points inthe curve, which may be traced accordingly. To describe…
