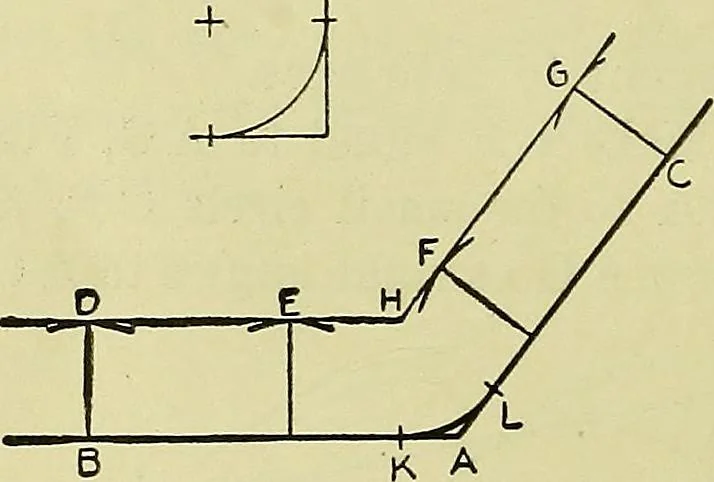

s shown in Fig. 195, page 184. 326 MECHANICAL DRAWING PROBLEM 10 Given: Two straight lines intersecting at any angle. Required: To draw an arc of given radius tangent to thetwo lines. Fig. 375. Instructions: First Method. With radius equal to the givenradius, draw ares from two different points in…
