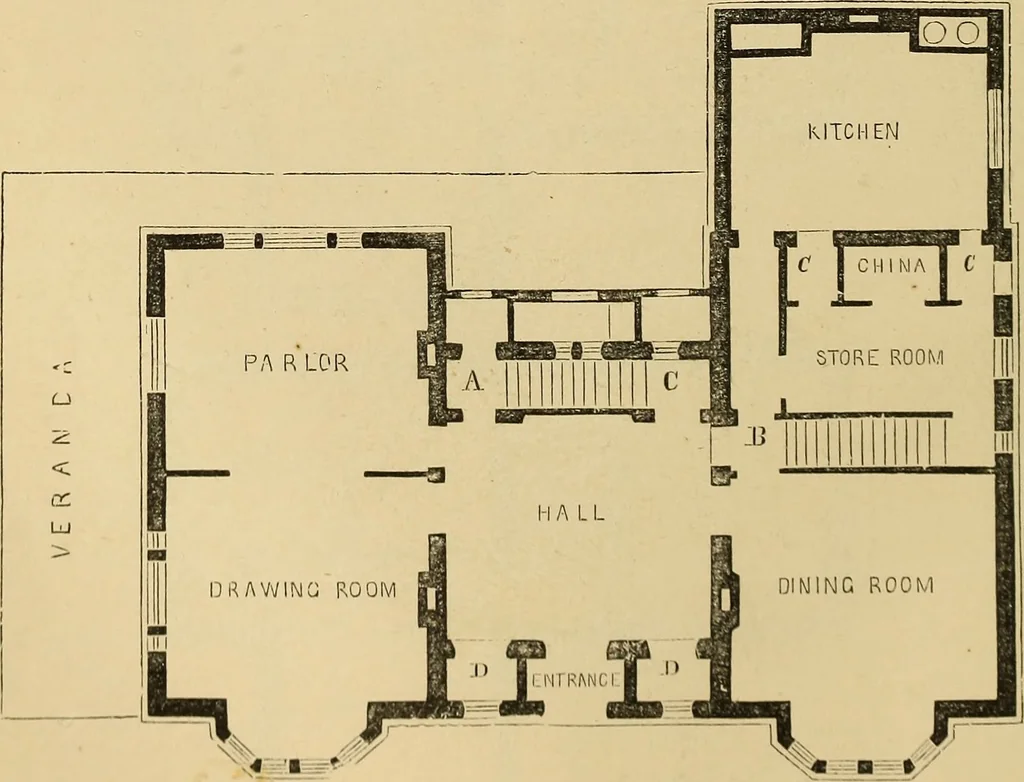

An illustration from Appleton's cyclopædia of drawing, designed as a textbook for the mechanic, architect, engineer, and surveyor, 1866, leaf 433
AECHITECTUEAL DRAWING. 281 sliowing in front but two windows to the stories above the basement, andone basement window. CircuLar heads are almost invariably used for thebasement openings, and for the windows above either square or slightlyarched lintels. Sometimes a species of Eomanesque window of…
