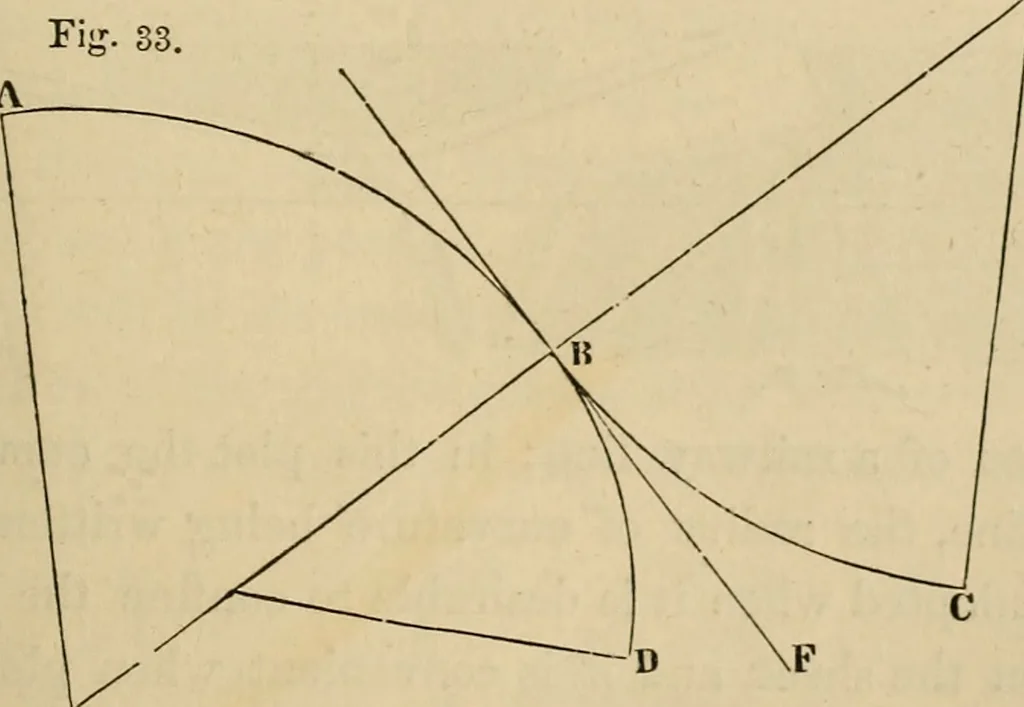

or different. •^°* ^^- X I If they lie on the same side of the common tangent and have dif-ferent radii, they forma compound curve, ABD. When the radii ofcurvature are known,the determination ofthe centres is ob-tained easily, by de-scribing arcs with the established radii from the tangent points.… … 364 TOPOGRAPHICAL DRAWING. place at B, then at A erect a perpendicular to the given line, findsome point on this perpendicular which is equally distant from A and B,and this point will be the centre of the curve A B; through this pointand B draw an indefinite line, its intersection by the…
