Appleton's cyclopædia of drawing, designed as a textbook for the mechanic, architect, engineer, and surveyor (1866)

Worthen, William Ezra, 1819-1897, [from old catalog] ed, Appleton, firm, publishers, New York. (1866. D. Appleton & co.) [from old catalog] · New York, D. Appleton and company · leaf 72

An illustration from Appleton's cyclopædia of drawing, designed as a textbook for the mechanic, architect, engineer, and surveyor, 1866, leaf 72

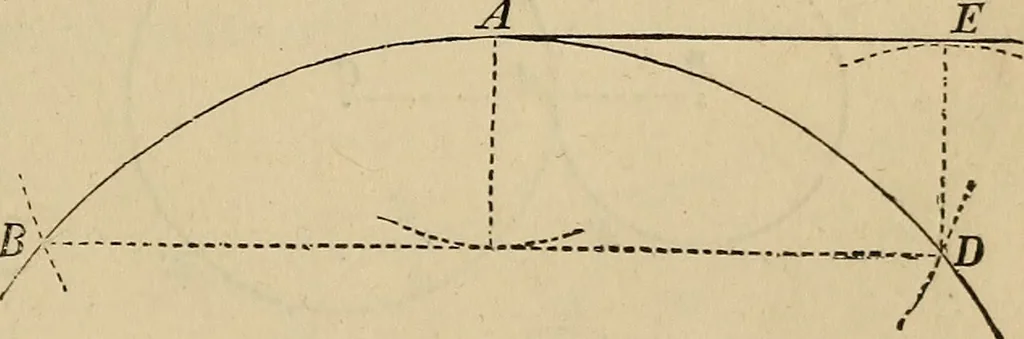

Fi- 104. Fig. 105. ^d Method.—^From A (fig. 105) set off equal segments, A B, A D ;join B D, and draw A E parallel to it, for the tangent. This method isuseful when the centre is inaccessible. Pkob. XIX.—To draw tangents to a circle from a point without it (fig.106). Draw A C from the given point A…
