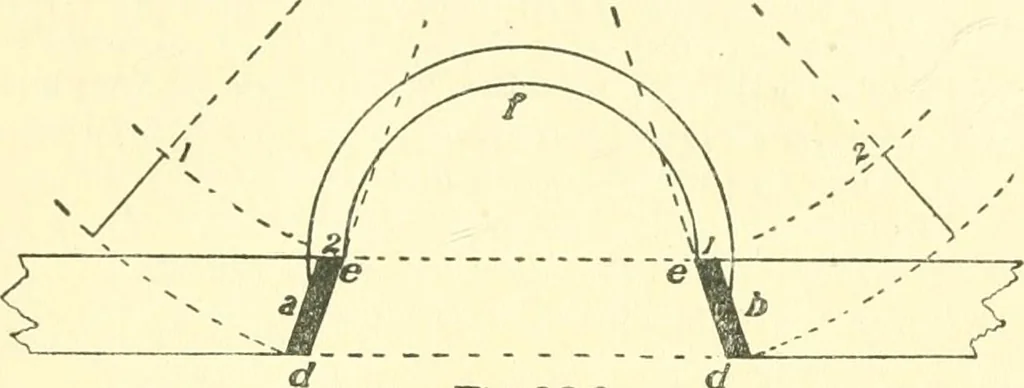

s 3 4 5Tig. I21 G y FOR CARPENTERS AND MECHANICS. 87 as a and b; continue the face lines of the jambs until theymeet at c ; then c e and c d \s> the radii to draw the soffit … Fig,l2Z or veneering for the arch. For the length make i 2 equalin length to the arch e f e. CHAPTER XI. To Lay Out the Joints in an Elliptic Arch—When any Three Points are Given, to Draw a Circle Whose Circumference Shall Strike Each of the Three Points— To Find the Centre of a Circle— To Find the…
