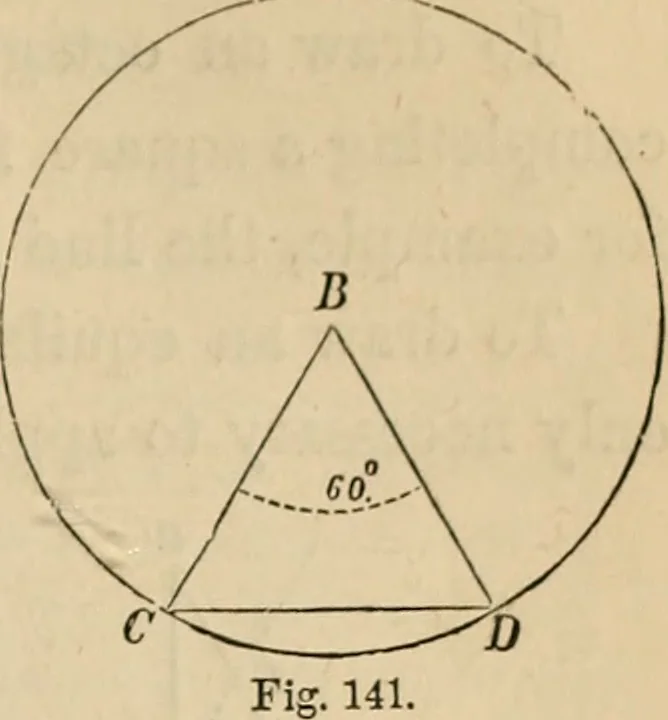

to be divided at thecircumference into six equal parts. Find the angleat the centre for a hexagon, or G0°; draw any ra-dius B C, and set off by a protractor or otherwisethe angle at the centre C B D, equal to G0° ; thenthe interval C D is one side of the figure, or seg-ment of the circumference;… … THE TJSE OF THE J SQUARE AKD TRIANGLE IN THE CONSTRUCIION OF SOMEOF THE FOREGOING PROBLEMS. From the description of the T square it may be seen, that by slidingthe stock along two contiguous edges of the board, the left hand andbottom edges, any number of parallel and perpendicular lines may…
