Worthen, William Ezra, 1819-1897, [from old catalog] ed · New York, Appleton · leaf 151

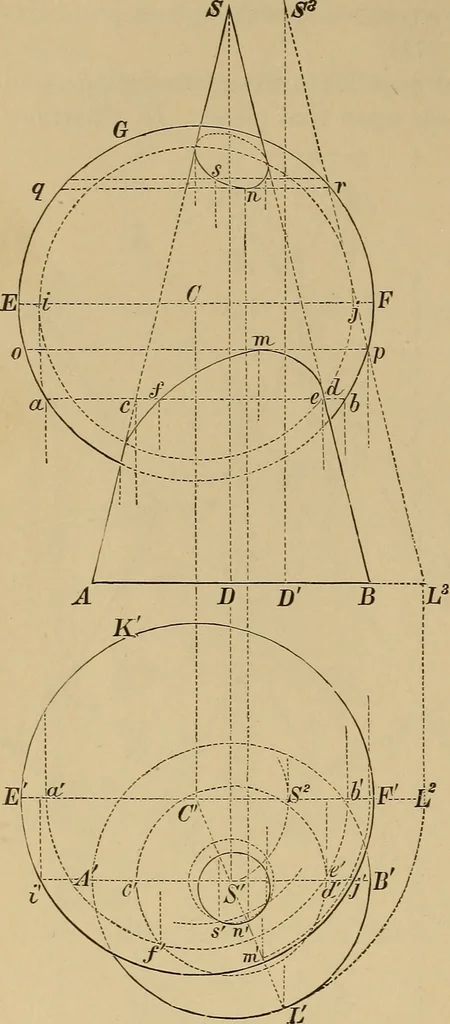

ons of two points in the lower curve, whichis entirely hidden by the sphere. The points referred to are projected ver-tically upon the line a h 2X e and/. The upper curve, which is seen in bothprojections, is obtained by a similar process; but it is to be observed that thehorizontal cutting planes… … Fig. 272. ORTHOGRAPHIC PROJECTION. 135 penetration. For this purpose, conceive a vertical plane passing through theaxis of the cone and the centre of the sphere; its horizontal projection willbe the straight line C L, joining the centres of the two bodies. Supposethis plane to be turned upon the…
Mechanical drawing
