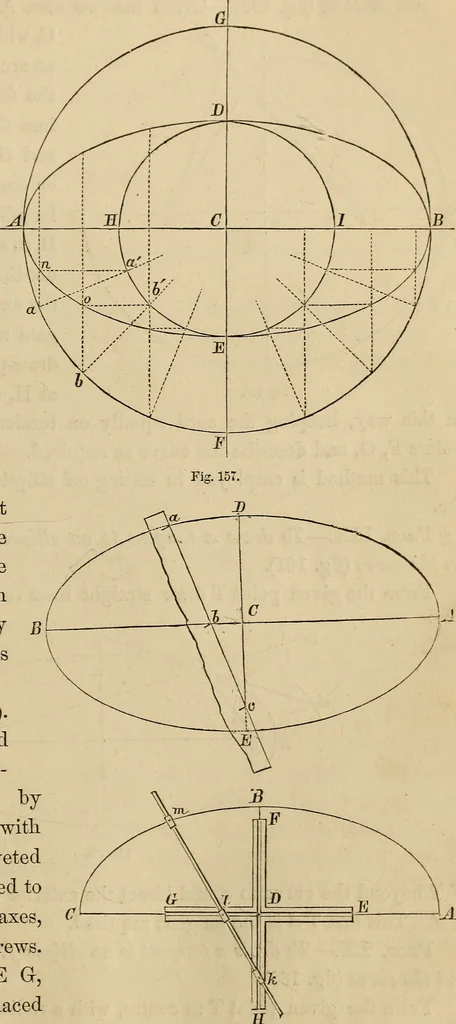

hepoint 5 on the transverseaxis, and the point c onthe conjugate axis, any qrequired number of pointsmay be found. Uh Method (fig. 159). —By the above methodlarge curves may be de-scribed continuously bymeans of a bar m h^ with steel points m, Z, Tc^ riveted into brass slides, adjusted to the… … YO GEOMETEICAL PROBLEMS. and carrying round the point m, tlie curve may be completely described.If desirable, of course, a pen or pencil may be fixed at m. Uh Method (fig. 160).—Given tlie two axes A B, C D ; on the centre C, with A E as radius, describean arc cutting A B at F and G,the foci; fiiL…
