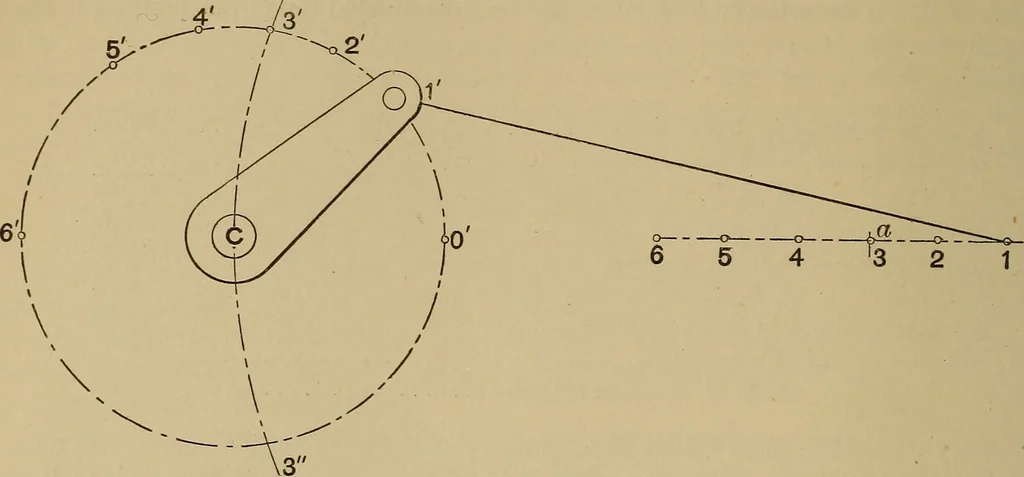

into equal spaces, but that of the crank-path is not.The point 3 corresponding to the mid stroke 3 of the crosshead is not that of the halfcircumference of the crank-path. These irregularities are due to the angularity of theconnecting-rod, which is here made less than its usual proportion to that… … 5 4 3210 Fig, 412. possible. Some other mechanism is necessary to pass over the dead-points; usually thisis by means of the fly-wheel, in which the force stored in the mass by rotation continuesthe motion, and rightly proportioned nearly with uniformity, and the irregularities aretransferred to the…
