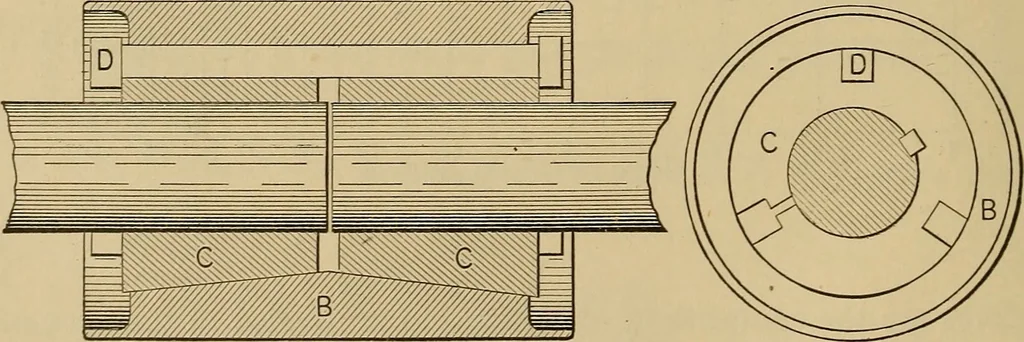

Fig. 600. … Fig. 601. Fig. 602. There are three bolt grooves in the cones and sleeves, and one is cut through togive elasticity to the cones. The sleeves and cones are adjusted over the jointof the shafts, leaving it an easy fit, some f inch between the ends of the cones. MACHINE DESIGN AND MECHANICAL…
