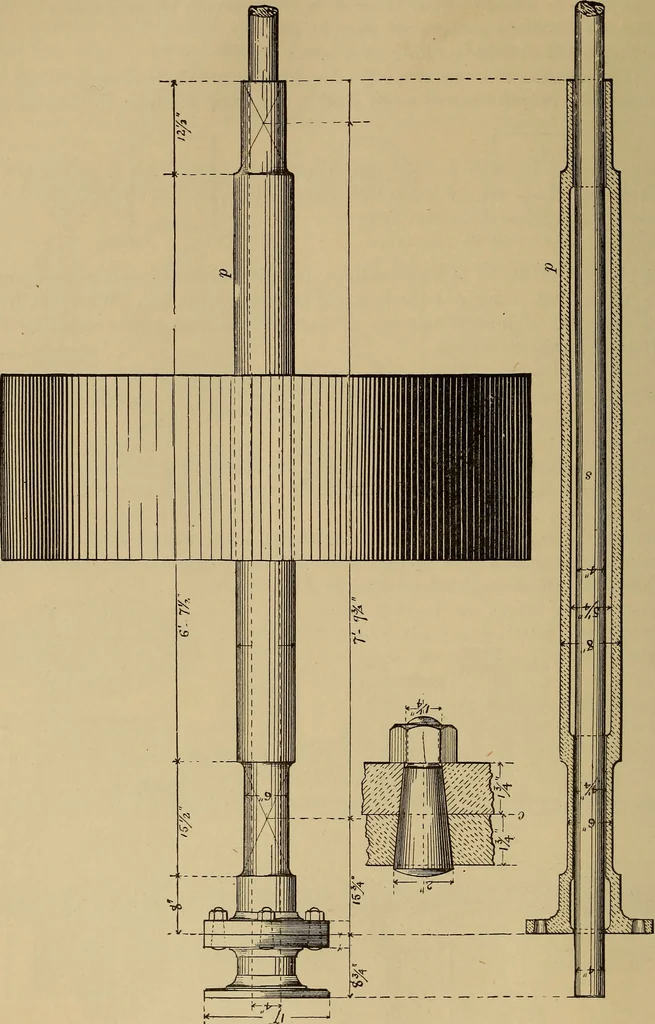

Fig. 606. Fig. 605 is a horned coupling. The two parts of the coupling are counter-parts, each firmly keyed to its respective shaft, but not fastened to each other; 2Y6 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. … Fig. 607. the horns of the one slip into the spaces of the other, and, if accurately fitted,it affords an excellent coupling, and is not perfectly rigid. It often happens that some portion of a shaft or machine is required to be MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 277 stopped while the…
